Big Size Fluted Polypropylene Sheets For Concrete Forming

China Big Size Fluted Polypropylene Sheets For Concrete Forming supplier
Big Size Fluted Polypropylene Sheets For Concrete Forming supplier Big Size Fluted Polypropylene Sheets For Concrete Forming supplier Big Size Fluted Polypropylene Sheets For Concrete Forming supplier

Large Image :  Big Size Fluted Polypropylene Sheets For Concrete Forming

Product Details:

Place of Origin: China
Brand Name: JINJIA
Certification: SGS
Model Number: customized

Payment & Shipping Terms:

Minimum Order Quantity: 2000 kgs
Price: negotiable
Packaging Details: wrapped with PE film with/without pallets
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C
Supply Ability: 180,000 kgs per Month
Contact Now
Detailed Product Description
Thickness: 3.3mm, 3.5mm, 4mm Material: Polypropylene PP
Color: Any Color Available Advantage: Perform Well In High Temperature
Package: PE Film Packed Size: 6m X 2.1m, 5800mm X 2100mm
High Light:

fluted plastic board

,

fluted plastic panels

Big Size Fluted Polypropylene Sheets for Concrete Forming

What is the fluted polypropylene sheet?



The fluted polypropylene sheets are extruded from the plastic material of polypropylene (PP) resin. The sheet has two smooth surfaces connected with ribs to form a hollow structure as the picture below, The smooth surface of the fluted polypropylene does not stick to concrete, provides an excellent separator between the concrete and the polystyrene.

Big Size Fluted Polypropylene Sheets For Concrete Forming

general physical characteristics

The general physical characteristics of the fluted polypropylene sheets are as follows.

Thickness

2mm

3mm

4mm

5mm

6mm

7mm

Density      GSM

300-600

350-800

600-1300

800-1500

900-1800

1000-2000

Color

any color available

any color available

any color available

any color available

any color available

any color available

Melt temperature  °C

130

130

130

130

130

130

breaking strength

along the flutes

>160 N

>170 N

>190 N

>200 N

>210 N

>220 N

across the flutes

>140 N

>150 N

>160 N

>170 N

>180 N

>190 N

ultimate elongation

along the flutes

150%

150%

150%

190%

190%

190%

across the flutes

40%

40%

40%

50%

50%

50%



As shown in the table above, the fluted polypropylene sheets are tough, flexible material which can be used in high-temperature environments. These characteristics allow the fluted polypropylene sheets being the ideal concrete forming material, especially at the working site where temperature is very high in summer. And the fluted polypropylene sheets are fatigue resistant. The sheets keep their shape after a lot of torsions and bendings. Our sheets can be re-used for 3-4 times, That will save a lot of money.



The fluted polypropylene sheets can be re-melted to make new sheets when broken. So they are recyclable, and environment-friendly material.

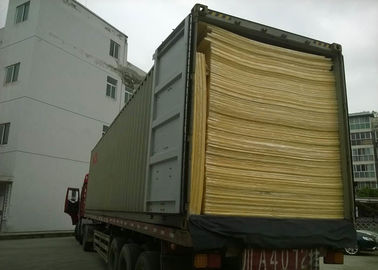

The biggest size we have made is the 6m x 2.1m sheets which are for loading into the 40HQ container, and 5.8m x 2.1m sheets are for loading into the 20ft container. Our factory can offer customized fluted polypropylene sheets according to your requirements for thickness, color, sizes. Welcome send inquiry to us.





6m x 2.1m  5800mm x 2100mm Corrugated Plastic Sheets for Concrete Forming
