Product Details:
Payment & Shipping Terms:
|
| Features: | Chemical Resistant | Thickness: | 2mm - 7mm |
|---|---|---|---|
| Size: | Max. Width 2.1m, No-limit In Length | Material: | Polypropylene |
| Color: | Any Color Available | Treatment: | Ultra-violet Protection, Fire Retardant， Anti-static |
| Die-cutting: | Can Die-cutted To Precise Shape | ||
| High Light: | fluted plastic board,correx fluted plastic sheets |
||

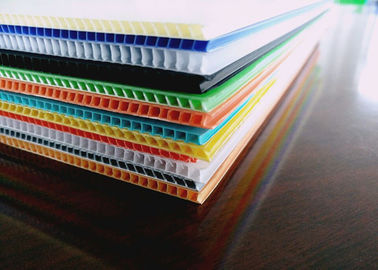

The fluted polypropylene sheets are made from the PP (polypropylene ) with twin wall skins and vertical ribs as the picture below.
With a neutral PH factor and inert chemical property, the fluted polypropylene sheets are resistant to 99% of all chemicals as follow.
Acid resistant
Alkalis and solvent resistant
Moisture and water resistant
Resistant to temperature up to 90℃ degrees
Being a tough, sturdy, and yet flexible material, the fluted polypropylene sheets also have prominent physical properties.
The general physical characteristics of the fluted plastic sheets is as follows.
|
Thickness |
2mm |
3mm |
4mm |
5mm |
6mm |
7mm |
|
|
Density GSM |
300-600 |
350-800 |
600-1300 |
800-1500 |
900-1800 |
1000-2000 |
|
|
Color |
any color available |
any color available |
any color available |
any color available |
any color available |
any color available |
|
|
Surface Tension (dyne/cm) |
35 |
35 |
35 |
35 |
35 |
35 |
|
|
breaking strength |
along the flutes |
>160 N |
>170 N |
>190 N |
>200 N |
>210 N |
>220 N |
|
across the flutes |
>140 N |
>150 N |
>160 N |
>170 N |
>180 N |
>190 N |
|
|
ultimate elongation |
along the flutes |
150% |
150% |
150% |
190% |
190% |
190% |
|
across the flutes |
40% |
40% |
40% |
50% |
50% |
50% |
|
The physical advantages of the fluted polypropylene sheets are as follows.
Abrasion resistant
stress crack resistant
Able to retain stiffness and flexibility
Great Hardness and Stiffness
With the feature of the chemical resistance and good physical properties, the fluted polypropylene sheets are widely used in various applications throughout the chemical and semiconductor industries.
Our factory can make the specific Chemical Resistant Fluted Polypropylene Sheet according to your needs. Welcome send the inquiry to us.
