Light Weight But Compression Resistant Fluted / Corrugated Polypropylene Sheets

Light Weight But Compression Resistant Fluted / Corrugated Polypropylene Sheets
Light Weight But Compression Resistant Fluted / Corrugated Polypropylene Sheets Light Weight But Compression Resistant Fluted / Corrugated Polypropylene Sheets

Large Image :  Light Weight But Compression Resistant Fluted / Corrugated Polypropylene Sheets

Product Details:
Place of Origin: China
Brand Name: JINJIA SUJIAO
Certification: SGS
Model Number: customized
Payment & Shipping Terms:
Minimum Order Quantity: 5000 kgs
Price: negotiable
Packaging Details: wrapped with PE film with/without pallets
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C
Supply Ability: 180,000 kgs per Month
Detailed Product Description
Material: Polypropylene PP Thickness: 2mm - 7mm
Color: Any Other Color Available Maximum Width: 2.1 Meter
Length: Customization Treatment: Anti-ultraviolet , Fire Retardant,
High Light:

fluted plastic board

,

fluted plastic panels

Light Weight but Compression Resistant Fluted / Corrugated Polypropylene Sheets

Physical & Chemical Characteristics of the fluted / corrugated plastic sheets

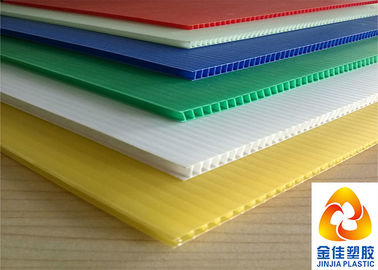

The main raw material of the fluted / corrugated polypropylene sheets is the PP (polypropylene)  resin whose density is about 0.9 g/cm3  , which is one of the lightest plastic material.  The sheets' structure consists of two smooth surface and the vertical ribs,  which is similar to the paper cardboard, except the flutes are rectangular as the pictures below.
 light weight but compression resistant fluted corrugated polypropylene sheets

This hollow construction plus the light PP material provides a very important feature of light-weight. And the polypropylene is tough, compression resistant, and impact-proof material. Furthermore,  unlike the paper cardboard which loses its rigidity when absorbing the water, the corrugated polythene sheets are water and moist repellant,  which lets the fluted polypropylene sheets be the ideal material for use in the wet environment.
The general physical characteristics of the fluted / corrugated plastic sheets are as follows.

Thickness 2mm 3mm 4mm 5mm 6mm 7mm
Density GSM 300-600 350-800 600-1300 800-1500 900-1800 1000-2000
Color any color available any color available any color available any color available any color available any color available
Surface Tension (dyne/cm) 35 35 35 35 35 35
breaking strength along the flutes >160 N >170 N >190 N >200 N >210 N >220 N
across the flutes >140 N >150 N >160 N >170 N >180 N >190 N
ultimate elongation along the flutes 150% 150% 150% 190% 190% 190%
across the flutes 40% 40% 40% 50% 50% 50%


Chemically, the fluted / corrugated polypropylene sheets are toxic-free, and odorless, allowing the sheets to be the food packaging material.



Applications



The most common applications of the fluted / corrugated sheets are as follows.
1. to make various plastic boxes for fruit, vegetable, fish, and shrimp transportation.
2. to be the plastic divider sheets ( plastic interlayer sheets) for bottles, metal cans, jars transportation
3. be the wood, porcelain tile, or marble floor temporary protection sheets during decoration
4. tree guard
5. to be printed as yard signs

The fluted polypropylene sheets are customized products, Please tell us your requirements, we will offer qualified sheets to you.
