Customized Corrugated Plastic Components Box With Plastic Divider

China Customized Corrugated Plastic Components Box With Plastic Divider supplier
Customized Corrugated Plastic Components Box With Plastic Divider supplier Customized Corrugated Plastic Components Box With Plastic Divider supplier

Large Image :  Customized Corrugated Plastic Components Box With Plastic Divider

Product Details:

Place of Origin: China
Brand Name: JINJIA
Certification: SGS
Model Number: Components Box with Plastic Divider

Payment & Shipping Terms:

Minimum Order Quantity: 1000 boxes
Price: negotiable
Packaging Details: on pallets
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C
Supply Ability: 200,000 boxes per Month
Contact Now
Detailed Product Description
Material: Fluted Plastic Sheets Thickness Of The Sheet: 4 Mm
Color: Gray, And Any Color Available Box Dimension: 60cm X 50cm X20cm
Box Design: Customized Available Printing: Single Color Printing Available
Frame Type: Plastic, Aluminum Frame Available Stacking Corners: Plastic
High Light:

corrugated plastic containers

,

corrugated plastic storage boxes

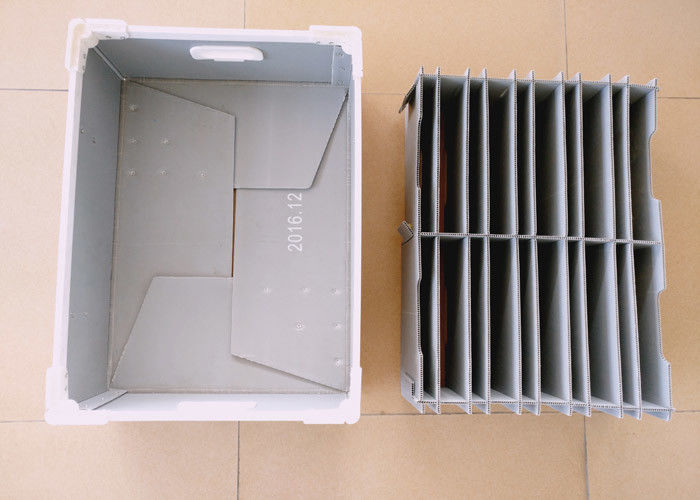

Customized Corrugated Plastic Components Box with Plastic Divider

Detail of the corrugated plastic components box

The corrugated plastic components box is a well-established product for delivering various components to the assembly line in many machinery manufacture industries, such as automotive, aircraft, electronic equipment, etc.. The boxes are made from fluted /corrugated polypropylene sheets which are extruded from HDPP (high-density polypropylene) resin. The sheets are the desired material to make the boxes of the components due to its durable nature and impact shatter resistance. Compared with the injection moulded containers, the corrugated plastic components boxes tooling costs are comparatively low and provide greater flexibility, which is selected by many leading global car manufacturers.



The general physical characteristics of the corrugated polypropylene sheet are as follows.

Thickness 2mm 3mm 4mm 5mm 6mm 7mm
Density GSM 300-600 350-800 600-1300 800-1500 900-1800 1000-2000
Color any color available any color available any color available any color available any color available any color available
Surface Tension *(dyne/cm) 35 35 35 35 35 35
breaking strength along the flutes >160 N >170 N >190 N >200 N >210 N >220 N
across the flutes >140 N >150 N >160 N >170 N >180 N >190 N
ultimate elongation along the flutes 150% 150% 150% 190% 190% 190%
across the flutes 40% 40% 40% 50% 50% 50%

* for polypropylene material



The OEM/ODM service that our factory offer

The Corrugated Plastic Components Boxes are totally customized products that are unique for different clients.

The service that our factory offers to make the boxes is as follows.

· Die cutting

· Riveting

· Ultrasonic welding

· Flat welding

· Plastic or Aluminum frames

· Add plastic handles

· Cleaning and packing

· One color printing

· Grommet Installation

· Stacking corners

· fabric coating processes

· Complete manufacturing to assembly



We can make the boxes according to your design. Or you send the details of the components and tell us the box's color and size, the weight of the boxes to carry, we design the boxes to you.

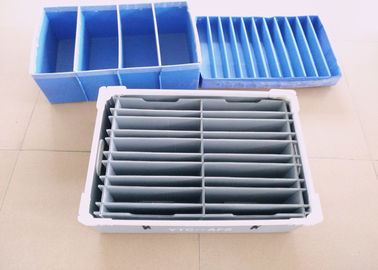

Customized Corrugated Plastic Components  Box with Plastic Divider
