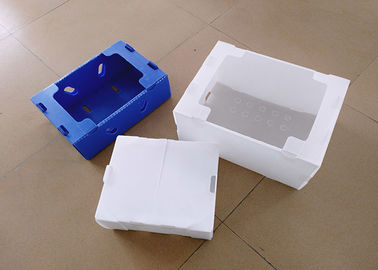

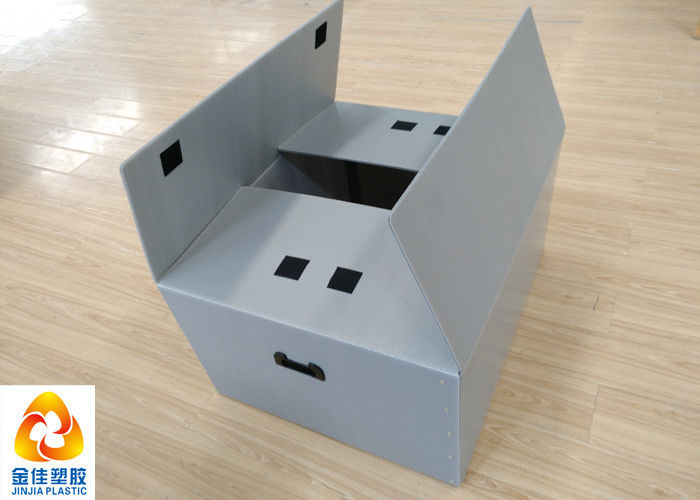

Corrugated Plastic Boxes Made From Corrugated Polypropylene Sheets

Corrugated Plastic Boxes Made From Corrugated Polypropylene Sheets
Corrugated Plastic Boxes Made From Corrugated Polypropylene Sheets Corrugated Plastic Boxes Made From Corrugated Polypropylene Sheets

Large Image :  Corrugated Plastic Boxes Made From Corrugated Polypropylene Sheets

Product Details:
Place of Origin: China
Brand Name: JINJIA
Certification: SGS
Model Number: NQ
Payment & Shipping Terms:
Minimum Order Quantity: 1000 boxes
Price: negotiable
Packaging Details: on pallets
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C
Supply Ability: 200,000 boxes per Month
Detailed Product Description
Material: Polypropylene Thickness Of The Sheet: 2mm - 5mm
Color: Any Color Available Box Dimension: Customized
Box Design: OEM Or ODM Printing: Single Color Printing Available
Weight To Carry: Up To 50 Kgs Seam Connection: Metal Rivets Or Ultrasonic Welding
High Light:

corrugated plastic storage boxes

,

corrugated plastic storage bins

Corrugated Plastic Boxes Made from Corrugated Polypropylene Sheets

Introduction of corrugated polypropylene sheet

Our Plastic Boxes are made from fluted /corrugated polypropylene sheets which are extruded from HDPP ( high density polypropylene)  resin. The sheet has a similar corrugated structure as the paper cardboard, except that the flutes are rectangular as the pictures below.  Due to this hollow construction, the sheet has a unique feature of light-weight.

flutes of the plastic sheets

Unlike the paper cardboard which lose its rigidity when absorbing the water , the corrugated polypropylene sheets are water and moist repellant which allow the boxes can be directly put into refrigerated storage house, and cannot be worry about the condensate water. The boxes also can be washed with water to re-use for many times.

The general physical characteristics of the corrugated polypropylene sheet is as follows.

Thickness 2mm 3mm 4mm 5mm 6mm 7mm
Density GSM 300-600 350-800 600-1300 800-1500 900-1800 1000-2000
Color any color available any color available any color available any color available any color available any color available
Surface Tension *(dyne/cm) 35 35 35 35 35 35
breaking strength along the flutes >160 N >170 N >190 N >200 N >210 N >220 N
across the flutes >140 N >150 N >160 N >170 N >180 N >190 N
ultimate elongation along the flutes 150% 150% 150% 190% 190% 190%
across the flutes 40% 40% 40% 50% 50% 50%

* for polypropylene material



Connection of the corrugated plastic boxes

Normally, the seams of the corrugated plastic boxes are connected with metal rivets or ultrasonic welding. The metal rivet is firmer than ultrasonic welding, but the ultrasonic welding can avoid the contamination of the rust of metal rivets. The plastic vegetable boxes use the ultrasonic welding connection.

metal rivet and  ultrasonic welding boxe connection.



Various corrugated plastic boxes in different industries

The corrugated boxes can be perforated to allow the air exchange which is perfect for vegetables & fruit transportation.

perforated plastic boxes to allow the air exchange



The boxes can add with plastic dividers which is for component turn over boxes widely used in different manufacturer plants.



Corrugated Plastic Boxes Made From Corrugated Polypropylene Sheets 3



The boxes can be designed to be foldable for easy transporting with minimum volume.



The boxes are customized products. We have been specializing the corrugated plastic boxes for many years,  and can make the unique boxes according to your requirements.

You only need to tell us the box's color and size, the weight of the boxes to carry, we design the boxes to you.
