Waterproof And Lightweight Fluted Twin Wall Plastic Sheet

Waterproof And Lightweight Fluted Twin Wall Plastic Sheet
Waterproof And Lightweight Fluted Twin Wall Plastic Sheet Waterproof And Lightweight Fluted Twin Wall Plastic Sheet Waterproof And Lightweight Fluted Twin Wall Plastic Sheet

Large Image :  Waterproof And Lightweight Fluted Twin Wall Plastic Sheet

Product Details:
Place of Origin: China
Brand Name: JINJIA
Certification: SGS
Model Number: customized
Payment & Shipping Terms:
Minimum Order Quantity: 2000 kgs
Price: negotiable
Packaging Details: wrapped with PE film with/without pallets
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C
Supply Ability: 180,000 kgs per Month
Detailed Product Description
Feature: Waterproof And Lightweight Color: Any Color Available
Size: Max. Width 2.1m, No-limit In Length Material: Polypropylene
Thickness: 2mm, 3mm,4mm,5mm,6mm,7mm Treatment: Ultra-violet Protection, Fire Retardant, Anti-static
High Light:

polypropylene corrugated sheet

,

plastic corrugated pads

Waterproof and Lightweight Fluted Twin Wall Plastic Sheet

Features



1. Waterproof and Moisture resistance
2. Lightweight, easily transported
3. Heat and Voice insulation
4. Chemical resistant and non-toxic.
5. Easy to clean, reusable and recyclable

Application of the fluted plastic sheets

The fluted plastic sheets are made from the PP (polypropylene ) or PE  (polyethylene, or called polythene) resin which is the recyclable material.

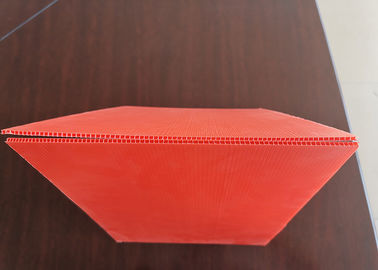

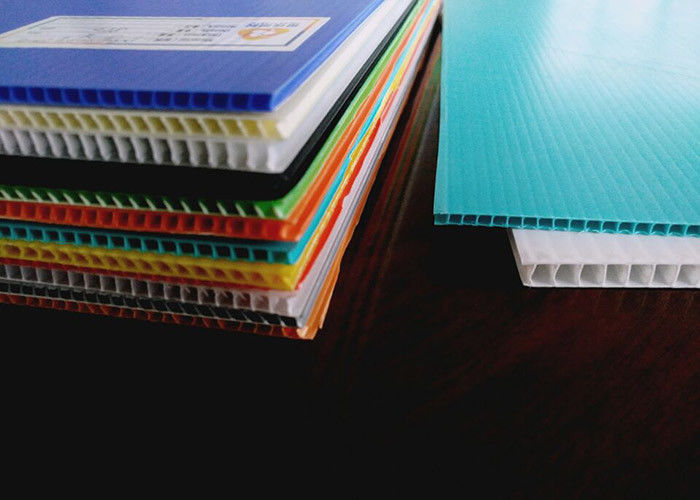

The sheets are hollow inside with twin wall surfaces with ribs as the pictures below.



Waterproof And Lightweight Fluted Twin Wall Plastic Sheet 0



The Fluted Twin Wall Plastic Sheets are very versatile material which can be applied in many different circumstances as follows.



  • hobby, craft material at home or school projects
  • surface protection and templates for construction projects
  • signage sheets
  • making corrugated plastic boxes
  • tree guards

Physical & Chemical Properties



The general physical characteristics of the fluted plastic sheets is as follows.

Thickness 2mm 3mm 4mm 5mm 6mm 7mm
Density      GSM       300-600 350-800 600-1300 800-1500 900-1800 1000-2000
Color any color available any color available any color available any color available any color available any color available
breaking strength along the flutes >160 N >170 N >190 N >200 N >210 N >220 N
across the flutes >140 N >150 N >160 N >170 N >180 N >190 N
ultimate elongation along the flutes 150% 150% 150% 190% 190% 190%
across the flutes 40% 40% 40% 50% 50% 50%

* for polypropylene material

The sheet has the inert chemical property with the neutral PH value of 7. The material of the sheets is non-toxic, odor-free. These characteristics let the sheets be the perfect material to make plastic boxes to store foods.

Unlike the paper cardboard which loses its rigidity when absorbing the water, the fluted plastic sheets are water and moist repellent which is suitable for the applications which need against the wet environment, such as fruit & vegetable plastic boxes which need put into refrigerated storage house, the greenhouse roofing, etc..



The fluted plastic sheets are not only repellent to the water, but also resistant to oils, almost all organic solvents at room temperature. This property lets them be the protection material widely used in many industries, such as automobile manufacture, machinery manufacture. Normally, they use plastic boxes with PP or PE material dividers to storage the automobile or machine components.



The boxes which are made from fluted plastic sheets can be washed up for reusing many times. And these boxes can be re-melted to make new sheets when broken. So they are recyclable, and environment-friendly material.



Our factory can offer customized fluted plastic sheets according to your needs. Welcome send inquiry to us.
