Fluted Plastic Sheets For Multi Purpose Applications

Fluted Plastic Sheets For Multi Purpose Applications
Fluted Plastic Sheets For Multi Purpose Applications Fluted Plastic Sheets For Multi Purpose Applications Fluted Plastic Sheets For Multi Purpose Applications Fluted Plastic Sheets For Multi Purpose Applications

Large Image :  Fluted Plastic Sheets For Multi Purpose Applications

Product Details:
Place of Origin: China
Brand Name: JINJIA
Certification: SGS
Model Number: customized
Payment & Shipping Terms:
Minimum Order Quantity: 1000 fluted plastic sheets ( varies with the thickness and weight of the sheets)
Price: negotiable
Packaging Details: wrapped with PE film with/without pallets
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C
Supply Ability: 180,000 kgs per Month
Detailed Product Description
Color: Any Color Available Thickness: 2mm - 7mm
Size: Max. Width 2.1m, No-limit In Length Material: Polypropylene
Weight: 300gsm - 3000gsm Treatment: Ultra-violet Protection, Fire Retardant, Anti-static
High Light:

coroplast corrugated plastic sheets

,

plastic corrugated pads

Environmentally Friendly Fluted Plastic Sheets for Multi-purpose Applications

Advantages of the fluted plastic sheets

The fluted plastic sheets are made from the PP (polypropylene ) or PE  (polyethylene, or called polythene) resin which is the recyclable material.

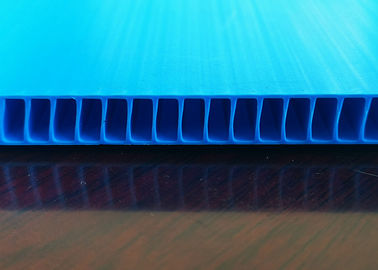

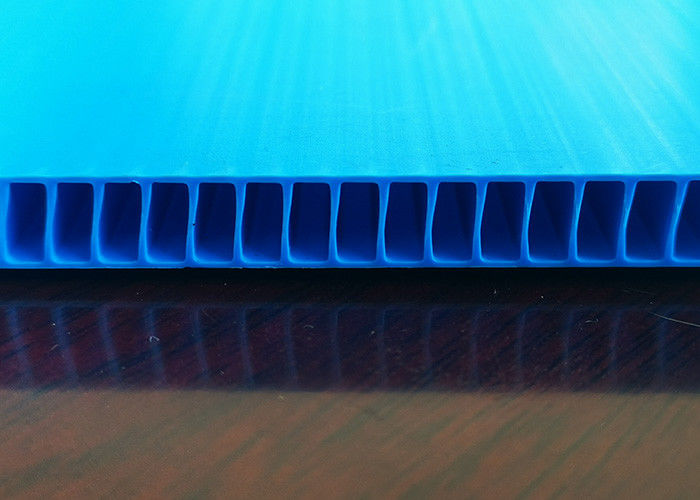

The sheets are hollow inside with two surfaces connected by ribs as the pictures below.



Fluted Plastic Sheets For Multi Purpose Applications



The advantages of the fluted plastic sheets are as follows.



  • Water, moisture, and most chemicals resistant
  • Lightweight, the weight is lighter than PVC board, wood board,  paper cardboard
  • Sturdy and durable
  • Can be cut to any size with common tools
  • Reusable for multiple applications, from the temporary floor and wall covering protection, countertop protection to making corrugated plastic boxes

Physical & Chemical Properties

The general physical characteristics of the fluted plastic sheets is as follows.

Thickness 2mm 3mm 4mm 5mm 6mm 7mm
Density      GSM       300-600 350-800 600-1300 800-1500 900-1800 1000-2000
Color any color available any color available any color available any color available any color available any color available
Surface Tension *(dyne/cm) 35 35 35 35 35 35
breaking strength along the flutes >160 N >170 N >190 N >200 N >210 N >220 N
across the flutes >140 N >150 N >160 N >170 N >180 N >190 N
ultimate elongation along the flutes 150% 150% 150% 190% 190% 190%
across the flutes 40% 40% 40% 50% 50% 50%

* for polypropylene material

The fluted plastic sheet has the inert chemical property with the neutral PH value of 7. The material of the sheets is non-toxic, odorless. These characteristics let the sheets be the perfect material to make plastic boxes to store foods.

Unlike the paper cardboard which loses its rigidity when absorbing the water, the fluted plastic sheets are water and moist repellent which is suitable for the applications which need against the wet environment, such as fruit & vegetable plastic boxes which need put into refrigerated storage house, the greenhouse roofing, etc..



The fluted plastic sheets are not only repellent to the water, but also resistant to oils, almost all organic solvents at room temperature. This property lets them be the protection material widely used in many industries, such as automobile manufacture, machinery manufacture. Normally, they use plastic boxes with PP or PE material dividers to storage the automobile or machine components.



The boxes which are made from fluted plastic sheets can be washed up for reusing many times. And these boxes can be re-melted to make new sheets when broken. So they are recyclable, and environment-friendly material.

Applications of the fluted plastic sheets

With these properties, the fluted plastic sheets are extremely versatile, and could be used for many different purposes. The popular appications are as follows.

1. to make corrugated plastic boxes in many industries, such as machine components boxes, moving boxes, fruit & vegetable boxes, drilling core box etc.

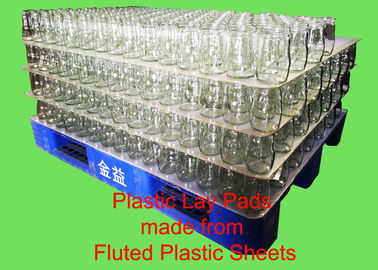

2. to make plastic layer pads ( plastic dividers  sheets) for bottles/cans transportation

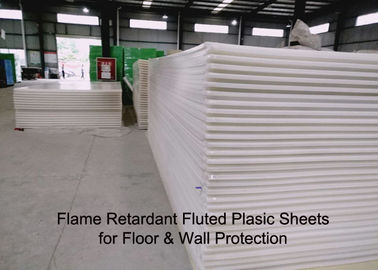

3. as the temporary protection sheets for wood or marble floor during decoration

4. can be printed as yard signs

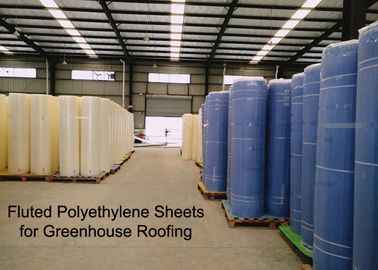

5. as roofing sheets for greenhouse, livestock house, dairy barns

6. tree guard



Our factory can offer customized fluted plastic sheets according to your needs. Welcome send inquiry to us.
