Fluted Plastic Dunnage Sheets for Packing Solar Silicon Wafers of Photovoltaic Cells

China Fluted Plastic Dunnage Sheets for Packing Solar Silicon Wafers of Photovoltaic Cells supplier
Fluted Plastic Dunnage Sheets for Packing Solar Silicon Wafers of Photovoltaic Cells supplier Fluted Plastic Dunnage Sheets for Packing Solar Silicon Wafers of Photovoltaic Cells supplier Fluted Plastic Dunnage Sheets for Packing Solar Silicon Wafers of Photovoltaic Cells supplier Fluted Plastic Dunnage Sheets for Packing Solar Silicon Wafers of Photovoltaic Cells supplier

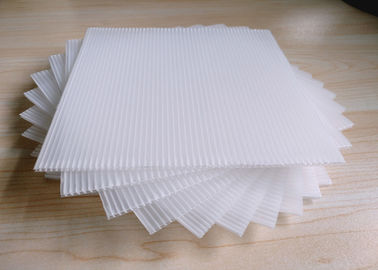

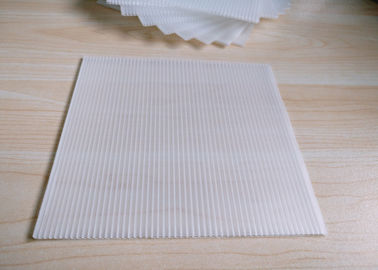

Large Image :  Fluted Plastic Dunnage Sheets for Packing Solar Silicon Wafers of Photovoltaic Cells

Product Details:

Place of Origin: China
Brand Name: JINJIA
Certification: SGS
Model Number: 156mm x 156mm

Payment & Shipping Terms:

Minimum Order Quantity: 200,000 piece
Price: negotiable
Packaging Details: 900 pieces per package
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C
Supply Ability: 1.2 million pieces per Month
Contact Now
Detailed Product Description
Material: Polypropylene Fluted Plastic Sheets Common Sizes: 156mm X 156mm, 157mm X157mm, 158mm X 158mm,159mm X 159mm
Thickness: 3mm Color: Transparent, And Any Color Available
Customization: Custom Size And Shape Available Usage: As A Buffer Material Between Solar Silicon Wafers

Fluted Plastic Dunnage Sheets for Packing Solar Silicon Wafers of Photovoltaic Cells

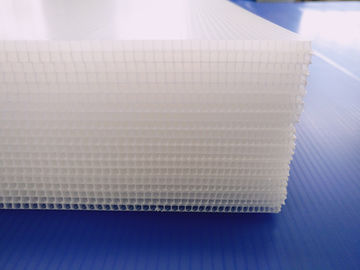

Physical Characteristics of the Fluted Plastic Dunnage Sheets

The Fluted Plastic Dunnage Sheet is a well-established product for delivering Solar Silicon Wafers of Photovoltaic Cells to the Photovoltaic Cells assembly lines. The sheets are made from fluted /corrugated polypropylene sheets which are extruded from HDPP (high-density polypropylene) resin.



The general physical characteristics of the Fluted Plastic Dunnage Sheets are as follows.

Thickness 2mm 3mm 4mm 5mm 6mm 7mm
Density GSM 300-600 350-800 600-1300 800-1500 900-1800 1000-2000
Color any color available any color available any color available any color available any color available any color available
Surface Tension (dyne/cm) 35 35 35 35 35 35
breaking strength along the flutes >160 N >170 N >190 N >200 N >210 N >220 N
across the flutes >140 N >150 N >160 N >170 N >180 N >190 N
ultimate elongation along the flutes 150% 150% 150% 190% 190% 190%
across the flutes 40% 40% 40% 50% 50% 50%



Advantage of the Fluted Plastic Dunnage Sheets

The Solar Silicon Wafers are very fragile and vulnerable. It will be a lot of damages if the wafers are not protected well during transportation.

Traditionally, paper cardboards are put between the Solar Silicon Wafers as the buffer material. However, the broken rate of the Solar Silicon Wafers during the transportation is still high, because the paper cardboard is not flexible and strong enough for buffering the impact between silicon wafers. Furthermore, paper cardboards are not water-repellent. When the paper cardboard absorbs water, it will lose rigidness  and will be expanded, which will result in additional damage to the silicon wafers.



Compared with the paper cardboard, the fluted plastic sheets are the desired material to be the buffer material due to its nature of shatter resistance, and water repellence.



According to the feedback from our customers, the damage rate of Solar Silicon Wafers decreased significantly after using our  Fluted Plastic Dunnage Sheets.

Customization size and shape available

Normally, the sizes of Fluted Plastic Dunnage Sheets for Packing Solar Silicon Wafers of Photovoltaic Cells are as follows.

156mm x 156mm

157mm x 157mm

158mm x 158mm

159mm x 159mm

The thickness of them is 3mm.



Our factory can produce the dunnage sheet according to your requirement. For example, some customer need the octagon shape dunnage sheets.

Welcome send your requirement to us. and we offer good quality dunnage sheets to satisfy you.



producing the Fluted Plastic Dunnage Sheets for Packing Solar Silicon Wafers of Photovoltaic Cells
